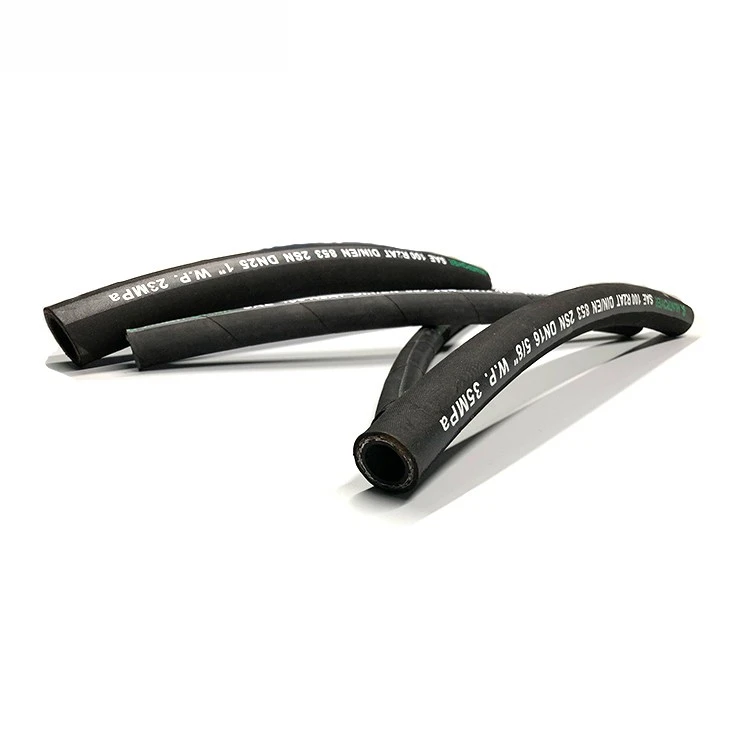

2 qatlamli tolali R3,2TE,3TE Shlangi shlang
kalit so'zlar: Shlangi shlang
qatlam: 1-6 qatlam
rang: qora, qizil, ko'k va boshqalar.
harorat: -40 daraja ± 100 daraja /-40 daraja -120 daraja
bosim: moslashtirilgan
Ilova: gidravlik suyuqliklar va gazlarni tashish
Mahsulotlar tavsifi
Ultra{0}}yuqori bosimli gidravlik shlanglar seriyasi
Model: R3 gidravlik shlang (po'lat simli o'rashning 1 qatlami)|2TE gidravlik shlang (po'lat simli o'rashning 2 qatlami)|3TE gidravlik shlang (3 qatlamli po'lat simli o'rash)
To'liq bosimni qoplash|Ikki marta zarba muddati|Aqlli tanlov tizimini qo'llab-quvvatlash
R3 gidravlik shlang (iqtisodiy yuqori bosim)
Bir qatlamli yuqori zichlikdagi po'lat simli o'rash, an'anaviy modellardan 25% engilroq, mobil qurilmalar uchun mos.
Odatda ilovalar: traktor gidravlik ko'tarish, inyeksion kalıplama mashinasi siqish tizimi.
2TE gidravlik shlang (sanoat darajasidagi ultra{1}}yuqori bosim)
Aramid tolasini mustahkamlash qatlami + po'lat simli teskari o'rashning ikki qatlami, zarba muddati 1,5 million marta.
Patentlangan egiluvchan texnologiya: egilish radiusi shu kabi mahsulotlarga qaraganda 20% kichikroq boʻlib, cheklangan joy-senariylar uchun mos keladi.
Odatda ilovalar: tog 'jinsli matkaplar, kema ankraj mashinasi gidravlik tizimlari.
3TE gidravlik shlang (ekstremal ish sharoitlari uchun maxsus)
3-qatlamli po'lat simli X shaklidagi matritsa: bitta qatlam uzilishidan keyin 70% ish bosimini saqlab turish mumkin.
Intellektual monitoring opsiyasi: o‘rnatilgan optik tolali sensor, bosim/harorat ma’lumotlarini real vaqtda- uzatish.
Odatda ilovalar: gidroelektrik darvoza gidravlik tsilindrlari, raketa yoqilg'isini to'ldirish uskunalari.
|
SAE100R1A/1AT
|
|
Nominal ichki diametr (dyuym)
|
Ichki diametri (mm) (min/maks)
|
Armatura diametri (mm) (min/maks)
|
Ish bosimi (maksimal)
|
Matn bosimi (mpa)
|
Portlash bosimi (mpa) min
|
|
3/16
|
4.6/5.4
|
8.9/10.1
|
21
|
42
|
84
|
|
1/4"
|
6.2/7
|
10.6/11.7
|
19.2
|
8.4
|
76.8
|
|
5/16"
|
7.7/8.58
|
12.1/13.3
|
17.5
|
35
|
35
|
|
3/8"
|
9.3/10.1
|
14.5/15.7
|
15.7
|
31.4
|
31.4
|
|
1/2"
|
12.3/13.5
|
17.5/19
|
14
|
28
|
28
|
|
5/8"
|
15.5/16.7
|
20.6/22.2
|
10.5
|
21
|
21
|
|
3/4"
|
18.6/19.8
|
24.6/26.2
|
87
|
17.4
|
17.4
|
|
1"
|
25/26.4
|
32.5/34.1
|
7
|
14
|
14
|
|
1-1/4"
|
31.4/33
|
39.3/41.7
|
4.3
|
8.6
|
8.6
|
|
1-1/2"
|
37.7/39.3
|
45.6/48
|
3.5
|
7
|
7
|
|
2"
|
5.4/52
|
58.7/61.9
|
2.6
|
5.2
|
5.2
|
|
SAE100R2A/2AT
|
|
Nominal ichki diametr (dyuym/dyuym)
|
Ichki diametri (mm) (min/maks)
|
Armatura diametri (mm) (min/maks)
|
Ish bosimi (maksimal)
|
Matn bosimi (mpa)
|
Portlash bosimi (mpa) min
|
|
5-3/16
|
4.6/5.4
|
10.6/11.7
|
35
|
70
|
140
|
|
6.3-1/4
|
6.2/7
|
12.1/13.3
|
35
|
70
|
140
|
|
8-5/16
|
7.7/8.5
|
13.7/14.9
|
29.7
|
59.4
|
118.8
|
|
10-3/8
|
3/10.1
|
16.4/17.3
|
28
|
56
|
112
|
|
12.5-1/2
|
12.3/13.5
|
19/20.6
|
24.5
|
49
|
98
|
|
16-5/8
|
15.5/16.7
|
22.2/23.8
|
19.2
|
38.4
|
76.8
|
|
19-3/4
|
18.6/19.8
|
26.2/27.8
|
15.7
|
31.4
|
62.8
|
|
25-1
|
28/26.4
|
34.1/35.7
|
14
|
28
|
56
|
|
31.5-1 1/4
|
31.4/33
|
13.2/45.6
|
11.3
|
22.6
|
45.2
|
|
38-1 1/2
|
37.7/39.3
|
49.6/52
|
8.7
|
17.4
|
34.8
|
|
51-2
|
50.4/520
|
62.3/64.7
|
7.8
|
15.6
|
31.2
|
|
63-
|
63.1/65.1
|
74.6/77.8
|
7
|
14
|
28
|
|
SAE100R6SP
|
|
Shlangi o'lchami
|
Ichki diametri (mm)
|
Armatura diametri (mm)
|
Ish bosimi (mpa/psi)
|
Matn bosimi (mpa/psi)
|
Portlash bosimi (mpa/psi)
|
Minimal egilish radiusi (mm)
|
|
6sp-6-110
|
6±0.5
|
16.6±0.8
|
110/15939
|
220/31876
|
440/63756
|
180
|
|
6sp-10-77
|
10±0.5
|
21.8±0.8
|
77/11157
|
154/22314
|
308/44628
|
210
|
|
6sp-13-66
|
13±0.5
|
24.8±0.8
|
66/9563
|
132/19126
|
264/38252
|
260
|
|
6sp-16-61
|
16±0.5
|
29±0.8
|
61/8893
|
122/17678
|
244/35356
|
310
|
|
6sp-19-60
|
19±0.5
|
33±0.8
|
60/7390
|
102/14780
|
204/29560
|
350
|
|
6sp-25-50
|
25±0.8
|
39±0.8
|
50/5651
|
78/11302
|
156/22604
|
430
|
|
6sp-32-45
|
32±0.8
|
47±0.8
|
45/5072
|
70/10144
|
140/20288
|
530
|
|
6sp-38-45
|
38±1.0
|
54.2±1.0
|
45/4057
|
56/8114
|
112/16228
|
660
|
|
6sp-51-45
|
51±1.0
|
67.2±1.0
|
45/3188
|
44/6376
|
88/12752
|
820
|
|
SAE100R4SP/SH
|
|
Shlangi o'lchami
|
Ichki diametri (mm)
|
Armatura diametri (mm)
|
Ish bosimi (mpa/psi)
|
Portlash bosimi (mpa/psi)
|
Minimal egilish radiusi (mm)
|
Og'irligi KG/M
|
|
4SP-6-100
|
6±0.5
|
14.4±0.8
|
100/14490
|
210/30429
|
130
|
0.65
|
|
4SP-8-80
|
8±0.5
|
16.4±0.8
|
80/11592
|
210/30429
|
145
|
0.85
|
|
4SP-10-70
|
10±0.5
|
19.2±0.8
|
70/10143
|
210/30429
|
160
|
1.03
|
|
4SP-13-60
|
13±0.5
|
22.2±0.8
|
60/8694
|
180/26082
|
410
|
1.21
|
|
4SP-16-55
|
16±0.5
|
26±0.8
|
55/7970
|
165/23909
|
260
|
172
|
|
4SP-19-46
|
19±0.5
|
30±0.8
|
46/6665
|
140/20286
|
280
|
2.08
|
|
2SP-19-28
|
19±0.5
|
27±0.8
|
28/4057
|
84/12172
|
280
|
1.32
|
|
4SP-22-40
|
22±0.8
|
33±0.8
|
40/5796
|
120/17388
|
320
|
2.39
|
|
4SP-25-35
|
25±0.8
|
36±0.8
|
35/5072
|
112/16299
|
360
|
1.64
|
|
4SP-32-32
|
25±0.8
|
44±0.8
|
32/4667
|
96/13910
|
460
|
3.12
|
|
2SP-32-20
|
32±0.8
|
41±0.8
|
20/2898
|
60/8694
|
460
|
2.14
|
|
4SP-38-25
|
38±1.0
|
50.8±1
|
25/3623
|
75/10868
|
860
|
4.31
|
|
4SP-42-23
|
45±1.0
|
57.8±1
|
23/3333
|
69/9998
|
650
|
4.87
|
|
4SP-51-20
|
51±1
|
63.8±1
|
20/2898
|
60/8694
|
720
|
5.4
|
|
2SP-51-14
|
51±1.0
|
60.8±1
|
14/2039
|
52/7535
|
720
|
3.42
|
|
2SP-25-21
|
25±0.8
|
33±0.8
|
21/3043
|
64/9274
|
360
|
1.64
|
|
SAE100R3SN
|
|
Shlangi o'lchami
|
Ichki diametri (mm)
|
Armatura diametri (mm)
|
Tashqi diametri (mm)
|
Ish bosimi (mpa/psi)
|
Portlash bosimi (mpa/psi)
|
Minimal egilish radiusi (mm)
|
|
35-72
|
5±0.5
|
13.2±0.6
|
17±0.8
|
72/10433
|
180/26082
|
120
|
|
3-6-68
|
6±0.5
|
15±0.6
|
19±1
|
68/95853
|
170/24633
|
140
|
|
3-8-54
|
8±0.5
|
17.5±0.6
|
22±1
|
54/7825
|
120/17388
|
160
|
|
3-10-44
|
10±0.5
|
19.5±0.6
|
24±1
|
44/6376
|
110/15939
|
180
|
|
3-13-36
|
13±0.5
|
23.5±0.8
|
28±1.2
|
36/4637
|
96/13910
|
240
|
|
3-16-32
|
16±0.5
|
26.5±0.8
|
32±1.2
|
32/3333
|
69/9989
|
300
|
|
3-19-28
|
19±0.5
|
29.5±0.8
|
34±1.2
|
28/2898
|
60/8694
|
330
|
|
3-22-26
|
22±0.5
|
32.5±0.8
|
31±1.2
|
26/2608
|
54/7825
|
380
|
|
3-25-24
|
25±0.5
|
36±0.8
|
41±1
|
24/2318
|
48/6955
|
400
|
|
3-32-13
|
32±0.5
|
43±0.8
|
48±1.2
|
13/1884
|
35/5651
|
450
|
|
3-38-12
|
38±0.7
|
49±0.8
|
54±1.5
|
12/1789
|
36/5216
|
500
|
|
3-51-10
|
51±1
|
62±0.8
|
67±1.5
|
10/1449
|
30/4347
|
630
|
|
3-64-6
|
67±1
|
75±0.8
|
80±1.5
|
6/895
|
18/2608
|
790
|
|
3-76-5
|
76±1
|
88±0.8
|
92±1.5
|
5/725
|
15/2174
|
960
|
|
3-89-4
|
89±1
|
101±0.8
|
107±1.5
|
4/580
|
12/1789
|
1100
|
|
3-102-3.5
|
102±1
|
114±0.8
|
120±1.5
|
3.5/507
|
10.5/1521
|
1280
|
|
3-127-3
|
127±1
|
13.9±1
|
145±1.5
|
3/435
|
9/1304
|
1560
|
